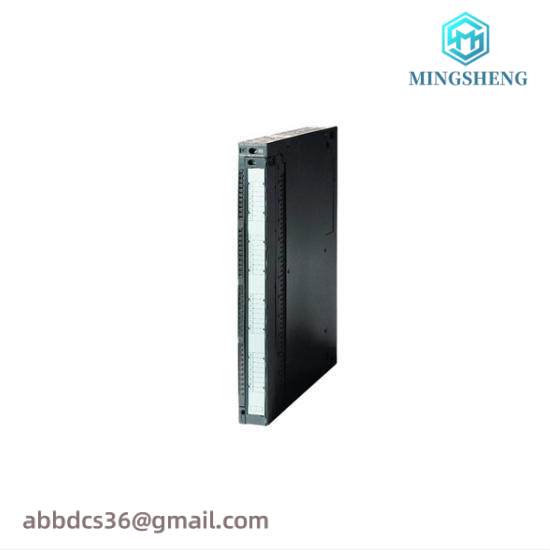

SIEMENS 6ES7422-1HH00-0AA0 Digital Output Module – High-Power PLC Control Solution

Model Type:Digital Output Module

Manufacturer:SIEMENS

Model Number:6ES7422-1HH00-0AA0

Net Weight (kg):0.879

Packaging Dimension:23.10 x 29.90 x 3.80 cm

Additional Information:SIMATIC S7-400, digital output SM 422, isolated 16 DO; 5..230 V AC, 5 A relay

Frequency Range:0.1~600Hz

Modular & Compact Design:Yes

Built-in PLC Function:Yes

Built-in EMI Filter:Yes

Fieldbus Modules:Optional (DeviceNet, Profibus, LonWorks, CANopen)

RFI-Switch for Mains:Easy

DC BUS Sharing:Flexible

Complete Protection:Nominal Input VAC: 208;240 Volts AC Amps (CT): 4.2 Amps

Maximum Frequency:600 Hz

    The Siemens 6ES7422-1HH00-0AA0 Digital Output Module boasts a compact design that ensures efficient use of space in industrial environments. Its optocoupled architecture provides electrical isolation, ensuring safety and preventing interference between different circuits. With a current rating of 1A per channel and compatibility with the S7-400 series PLCs, this module is tailored for seamless integration into existing automation systems.

    Each of the 16 digital output channels is equipped with diagnostic features, allowing users to monitor the health and status of each channel in real-time. This feature is crucial for predictive maintenance and enhancing system reliability. The floating design ensures that the module can operate without affecting or being affected by other circuits in the system, providing enhanced protection against transient voltages.

    The module’s operational temperature range of -25°C to +60°C makes it suitable for a wide variety of industrial settings, from cold storage facilities to hot manufacturing plants. This broad temperature tolerance ensures reliable performance under diverse environmental conditions.

    The Siemens 6ES7422-1HH00-0AA0 Digital Output Module comes with an intuitive interface for easy setup and configuration, enabling quick integration into existing control systems. It supports both programming and debugging through standard Siemens programming software, streamlining the development process for system integrators and engineers.

    For optimal performance and longevity, we recommend regular maintenance and updates to the firmware. Our customer support team is available to provide guidance on maintenance practices and troubleshooting tips, ensuring that your system operates at peak efficiency.
