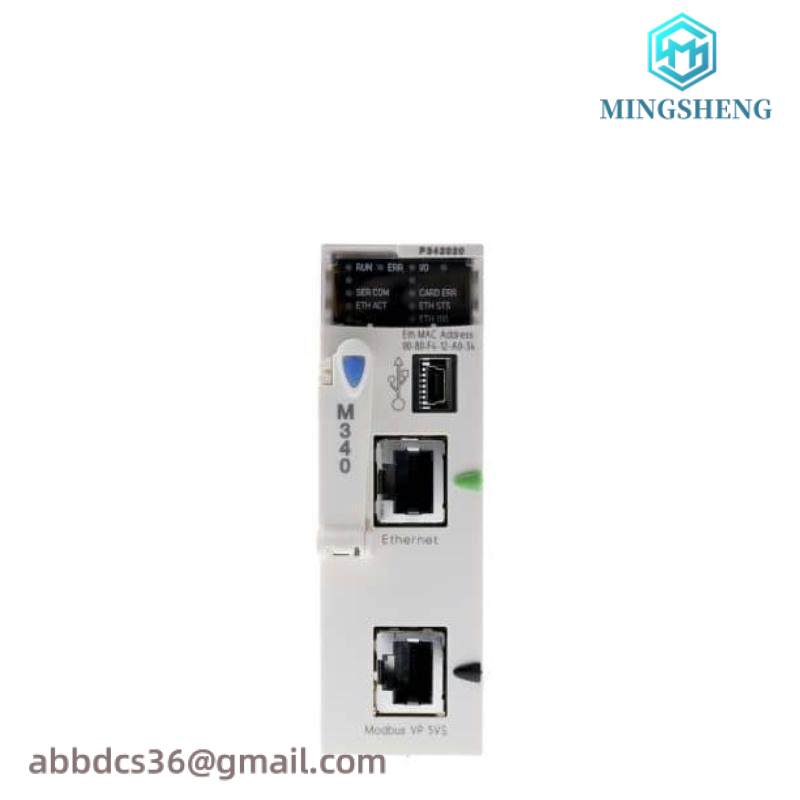

Schneider Electric’s BMXP342020 Modular PLC Processor, 0.095A, 24VDC

Product Type:Module

Model Number:BMXP342020H

Schneider Type Designation:PLC

Rack Compatibility:4 racks

Slot Capacity:11 slots

Current Consumption:95 mA

Power Supply:24 V DC, Internal via rack

Communication Ports:[“USB”,”Modbus”,”SERIAL”,”Ethernet-Modbus”,”TCP”]

Maximum I/O Capacity:1024 discrete I/O / 256 Analog I/O

Memory:4096kB RAM (3584kB for program + 256kB for data)

Operating Temperature Range:0 to 60°C

Environment Resistance:Conformal coated PCB, IP20 rated

    Schneider Electric’s BMXP342020H PLC Processor Module is a cornerstone of the Modicon M340 automation platform, designed to deliver exceptional performance in a variety of industrial settings. This module boasts a compact yet powerful design, making it suitable for complex control systems where reliability and efficiency are paramount.

    With its ability to handle up to 1024 input/output channels within a single rack, the BMXP342020H ensures seamless integration into any existing infrastructure. Its robust communication capabilities, including support for USB, Modbus, SERIAL, Ethernet-Modbus, and TCP, facilitate smooth data exchange and connectivity with other components.

    Featuring a high-capacity internal memory of 1024 discrete and 256 analog channels, this processor module can efficiently manage a wide range of control tasks, from simple logic operations to sophisticated data processing. Its conformal coated PCB ensures protection against dust, moisture, and other environmental hazards, guaranteeing consistent operation in challenging industrial environments.

    Built with an operating temperature range of 0 to 60°C, the BMXP342020H can withstand extreme conditions without compromising performance. The IP20 specification further enhances its durability, offering enhanced protection against dust and light splashes, ideal for manufacturing floors and other industrious applications.

    Designed with user convenience in mind, the BMXP342020H is compatible with Schneider Electric’s comprehensive ecosystem of software tools and accessories, enabling seamless setup and maintenance. Its compatibility with other Schneider products ensures a cohesive automation solution that maximizes productivity and reduces downtime.
