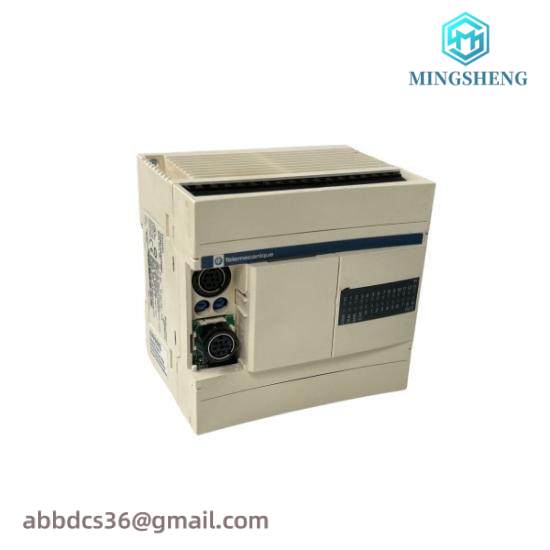

Schneider Electric TWDLCAA24DRF Compact Base Controller

Extended Product Type:Controller Module

Product ID:TWDLCAA24DRF

Schneider Type Designation:Compact Base Controller

Discrete I/O Number:24

Discrete Input Number:14

Discrete Input Voltage:24 V

Rated Supply Voltage:100…240 V AC

Use of Slot:Memory cartridge or realtime clock cartridge

Input Voltage Limits:20.4…28.8 V

Electrical Durability:>= 100000 cycles for relay

Output Power Consumption in VA:33 VA at 100 V, 40 VA at 264 V

Product Weight:0.67 lb (US) (0.305 kg)

    The Schneider Electric TWDLCAA24DRF Compact Base Controller is a powerhouse in industrial automation, featuring an ultra-fast 200 MHz processor that ensures swift response times and smooth operation under demanding conditions.

    With 64 MB of RAM and 32 MB of Flash memory, this controller offers ample space for storing complex control programs and large datasets, making it suitable for large-scale industrial applications.

    Equipped with a built-in 10/100 Mbps Ethernet interface, it seamlessly integrates with existing network infrastructures, enabling real-time data exchange and remote monitoring capabilities.

    Featuring 24 input and 16 output channels, the TWDLCAA24DRF is versatile enough to handle various types of sensors and actuators, supporting a wide array of control scenarios in diverse industries.

    Programmed using Schneider’s FreeLogic OS, the controller supports multiple programming languages including Structured Text (STL), Function Block Diagram (FBD), and Ladder Diagram, catering to a broad spectrum of engineering expertise.

    Compact yet robust, measuring just 9.5 x 7.5 x 1.5 inches and weighing 1.5 lbs, the TWDLCAA24DRF is designed for easy installation and integration into any industrial setup, enhancing productivity without compromising on space.
