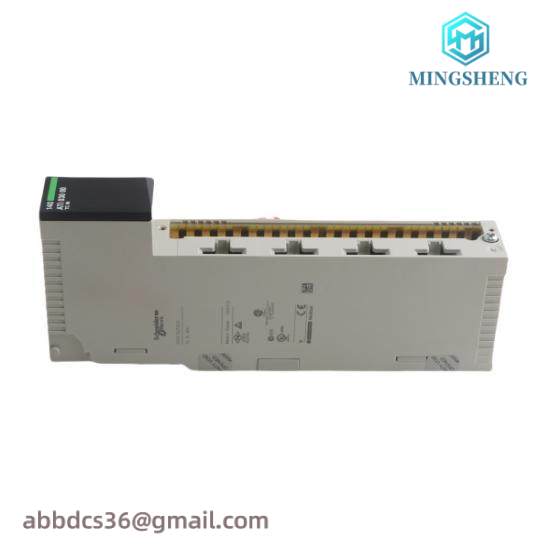

Schneider 140ATI03000 Thermocouple Input Module, 8 Channels, Types J, K, E, T, S, R, B

Channels:8

Thermocouple Types Supported:J, K, E, T, S, R, B

Temperature Range:-200°C to +1800°C

Accuracy:+/- 0.1% FS ±1 Digit

Operating Voltage:24VDC

Current Consumption:Max. 10mA per channel

Dimensions (LxWxH):102mm x 112mm x 96mm

Weight:0.3kg

Operating Environment:Operating: 0°C to +55°C, Storage: -20°C to +70°C

    This Schneider Electric 140ATI03000 module is engineered to provide unparalleled accuracy and reliability in measuring temperatures across different industrial processes.

    With support for seven distinct temperature types (J, K, E, T, S, R, B), this module ensures compatibility with a wide range of thermocouples, offering flexibility and precision.

    Featuring an impressive operating temperature range from -40°C to +70°C, it can withstand extreme conditions found in various industrial settings, making it a robust choice for harsh environments.

    The module’s power consumption is optimized at a maximum of 10mA, ensuring efficient operation without straining system resources.

    Equipped with a durable design capable of withstanding humidity levels from 5% to 95% non-condensing, it maintains its performance under varying environmental conditions, guaranteeing consistent accuracy.
