Protocol Compatibility:Profibus DP-V1
Communication Speeds:Up to 12 Mbps
Bus Type:Single-slot
Memory Access:Access to processor memory for efficient data transfer
Data Transfer Method:Ladder Logic for memory to processor communication
Configuration:Uses ProSoft Configuration Builder Software
Network Support:Complete Master specification according to IEC 61158
Class Support:Class 1 or Class 2 DPV1 services for acyclic parameter data transfer
Interface:Supports 16-bit integers, 10,000 words of available data, floating point data movement

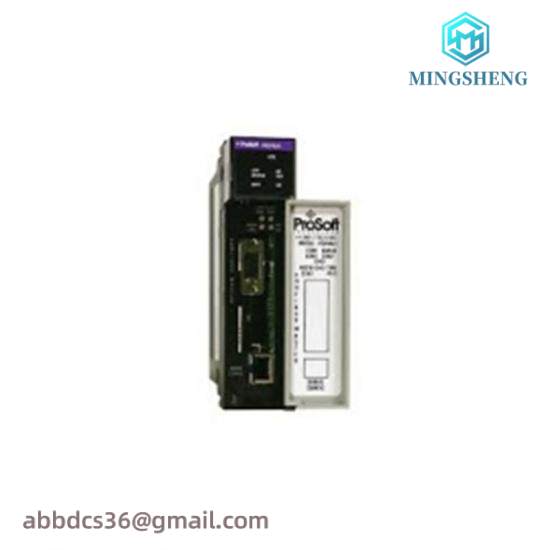

The ProSoft MVI56-PDPMV1 module is meticulously designed to optimize communication within industrial environments, ensuring reliability and efficiency in data exchange between the PROFIBUS network and ControlLogix processors.
With its single-slot design, it seamlessly integrates into existing 1769 backplane systems, offering an expanded footprint without compromising system integrity.
As an Input/Output module, it grants direct access to processor memory, facilitating rapid data transfer between the module and the central processing unit, thereby enhancing operational efficiency.
Leveraging Ladder Logic, the module enables seamless interaction between the internal memory and processor controller tags, providing a user-friendly interface for programming and monitoring.
Configurable through ProSoft Configuration Builder Software, this module allows for tailored setup of PROFIBUS networks, accommodating diverse automation requirements and ensuring compatibility with various devices.
