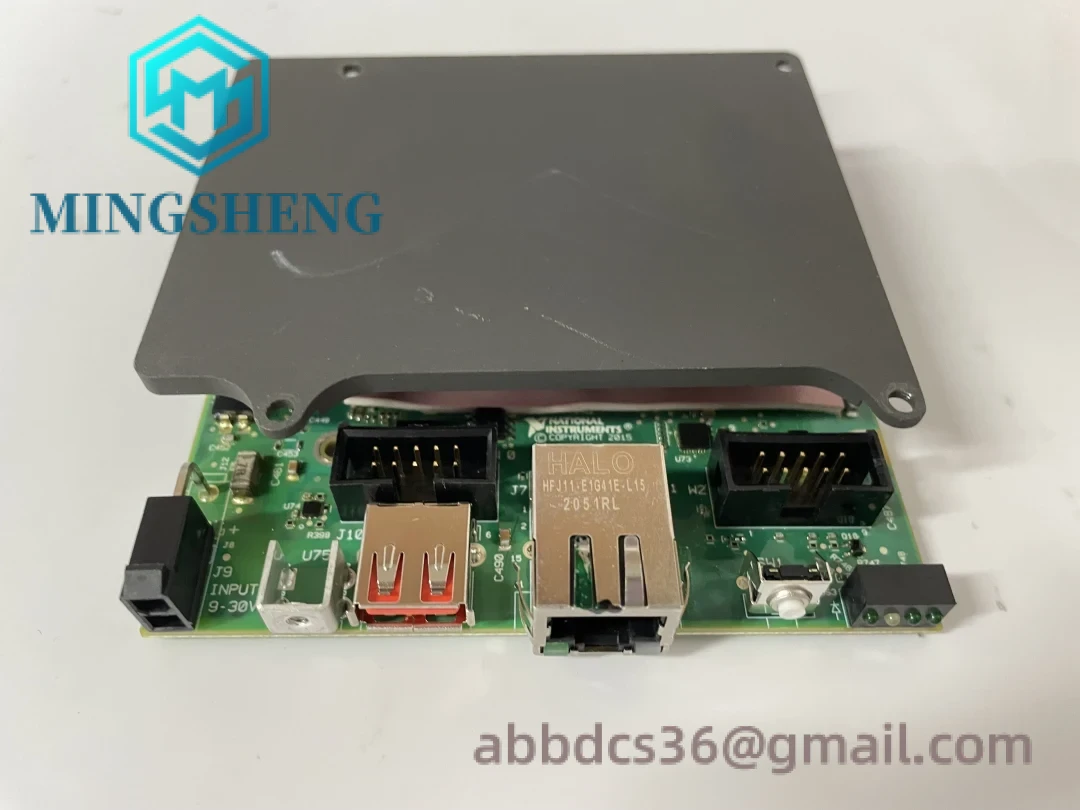

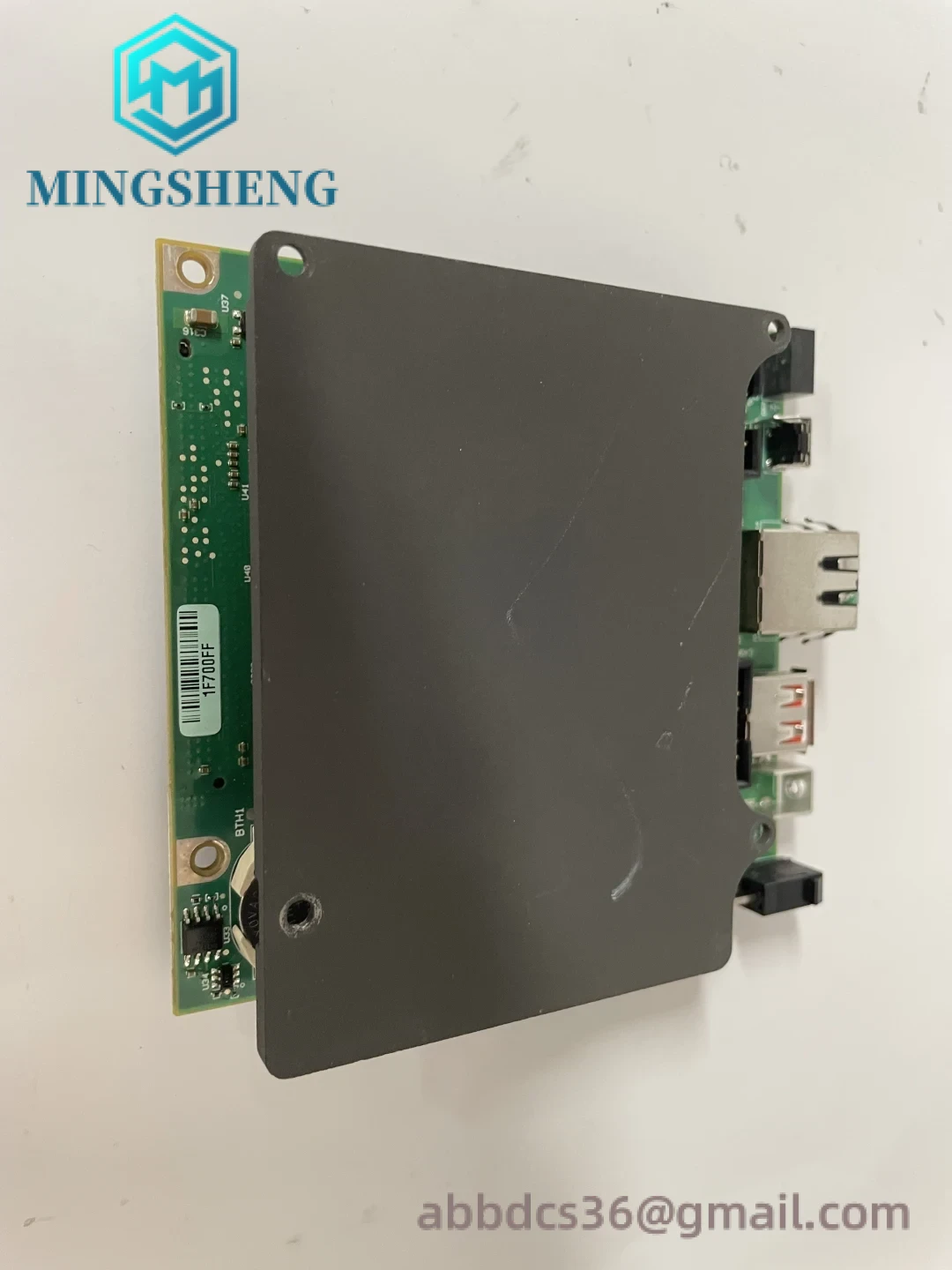

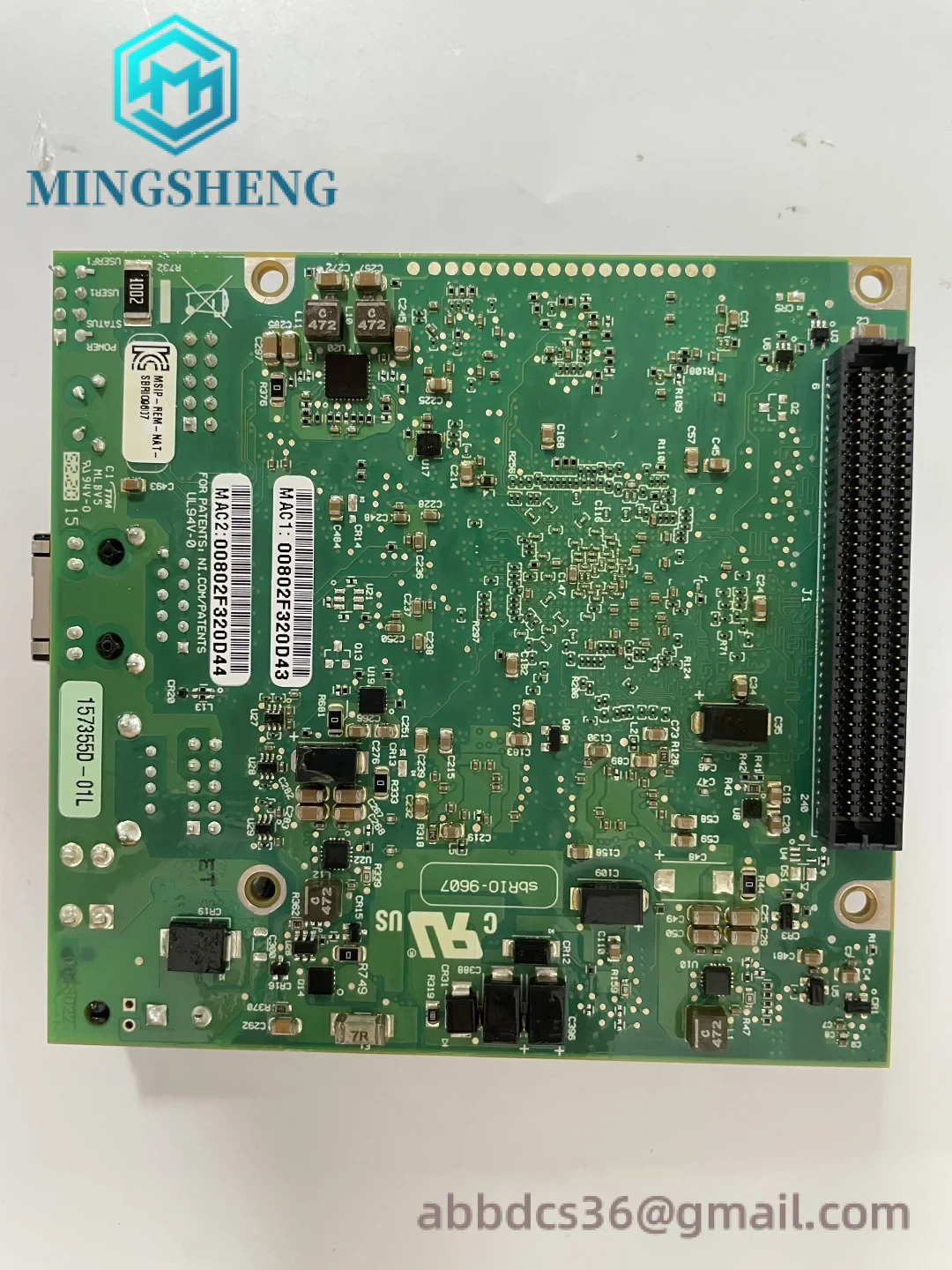

NI SBRIO-9607 Embedded Control Module

CompactRIO Single-Board RIO solution combining real-time processing with FPGA flexibility. Originally designed for precision control systems in demanding environments, this module bridges the gap between traditional PLCs and high-end industrial PCs. We’ve seen it deployed successfully in motion control systems, sensor fusion applications, and distributed automation architectures.

Technical Specifications

Manufacturer:

National Instruments

Model:

SBRIO-9607

Processor:

Dual-Core ARM Cortex-A9 @ 667MHz

FPGA:

Xilinx Zynq-7020 (7020-1CLG400C)

Memory:

512MB Flash + 512MB DRAM

I/O Lines:

96 Digital via RMC Connector

Comms:

Ethernet, CAN, USB, Serial

Temp Range:

-40°C to +85°C

Application Examples

This module excels in scenarios requiring tight synchronization between control algorithms and I/O operations. One customer recently used it for vibration analysis in wind turbines, combining 64-channel strain gauge inputs with real-time FFT processing on the FPGA. Others have implemented it in semiconductor manufacturing equipment for multi-axis motion control with sub-micron precision.

Our inventory includes both standard configurations and specialized variants with custom firmware. Popular applications include:

• High-speed test systems (up to 1MHz sampling)
• Condition monitoring for rotating equipment
• Custom machine vision controllers
• Embedded control for mobile robotics

Our Value Proposition

While National Instruments has discontinued direct support for this model, we maintain active engineering partnerships to ensure continued availability of technical documentation and programming tools. Our warehouse in Shenzhen typically holds 12-15 units in stock with complete calibration records.

Key advantages:

• 12-month warranty with full functional testing
• Global delivery from 6 regional hubs
• Free LabVIEW FPGA code templates available
• Custom RMC mezzanine card sourcing

Price Inquiry: Current stock units priced at $1,280-1,420 depending on firmware version. For exact quotes and compatibility checks with your existing system, contact our technical sales team via WhatsApp or email abbokok36@gmail.com
