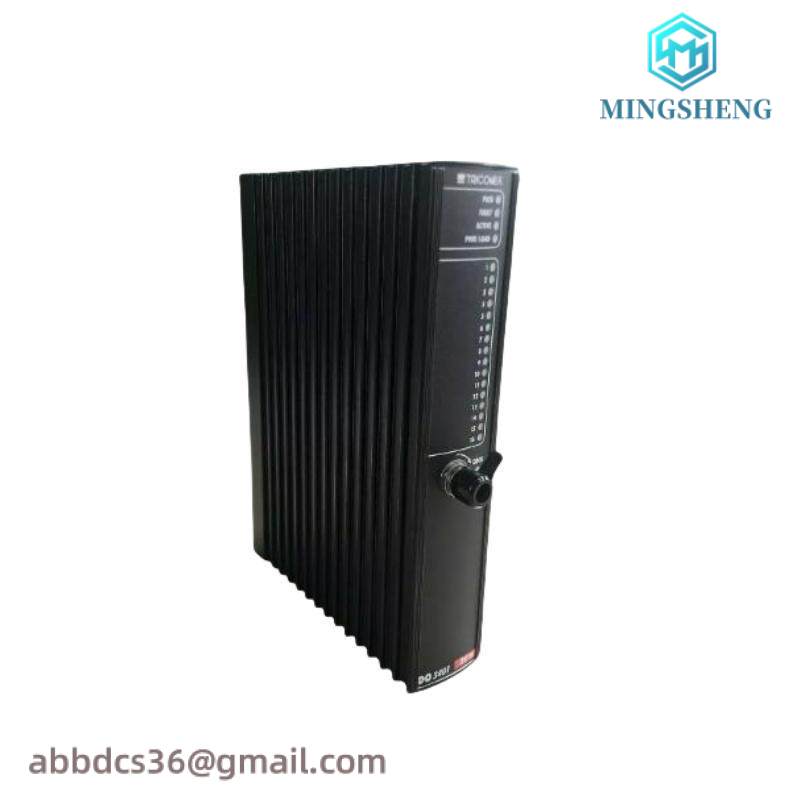

Invensys Triconex 3401 Digital Output Module: High-Performance, Reliable Control Solutions

Manufacturer:Invensys Triconex

Model Number:3401

Product Type:Digital Output Module

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Output Current (Switching):<4.8 A, self-limiting

Output Current (Typical):3.0 A

Degraded Mode Current:> 0.7 A, self-limiting

Loop-back Thresholds:0–5 VDC = Off region, 6–14 VDC = transition region, 15–30 VDC = On region

Leakage to Load (Off):Minimal

Commoned Points:16

Field Alarms:Loss of field power, output point shorted

On or Off Alarm:On or Off

Weight:0.5 kg

    The Invensys Triconex 3401 Digital Output Module is a robust solution for industrial automation, designed to enhance system reliability and performance. Its high switching capability ensures stable operation under varying conditions.

    Engineered for seamless integration, this module is compatible with a wide range of control systems, making it a versatile choice for various industrial applications. It supports both high and low voltage operations, providing flexibility in diverse environments.

    Featuring 16 commonly used output points, the Triconex 3401 offers efficient control over processes, enabling precise adjustments and responses. The self-limiting switching current prevents overheating and prolongs equipment lifespan.

    This digital output module boasts advanced loop-back threshold detection, ensuring accurate and reliable signal transmission. Its ability to handle both off and on states efficiently contributes to smoother system operation and enhanced safety measures.

    Designed with durability and reliability in mind, the Invensys Triconex 3401 Digital Output Module is an essential component for optimizing industrial processes. It supports a broad spectrum of industries, from chemical production to manufacturing, contributing to higher productivity and cost savings.
