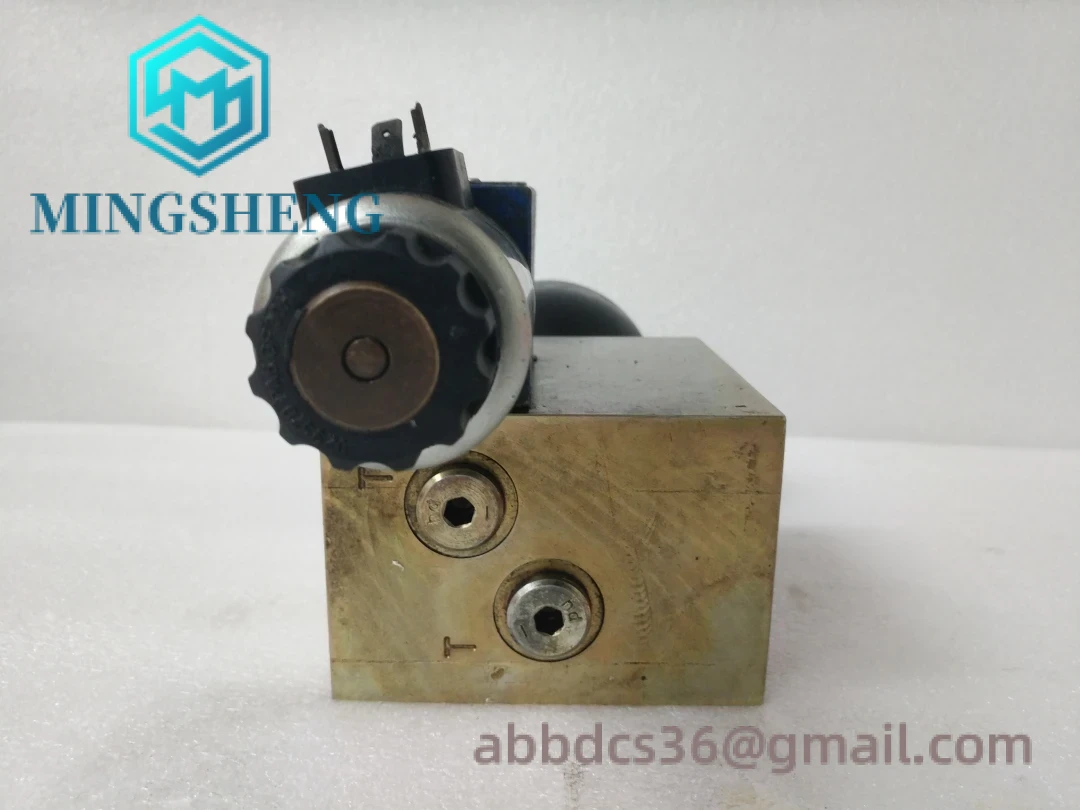

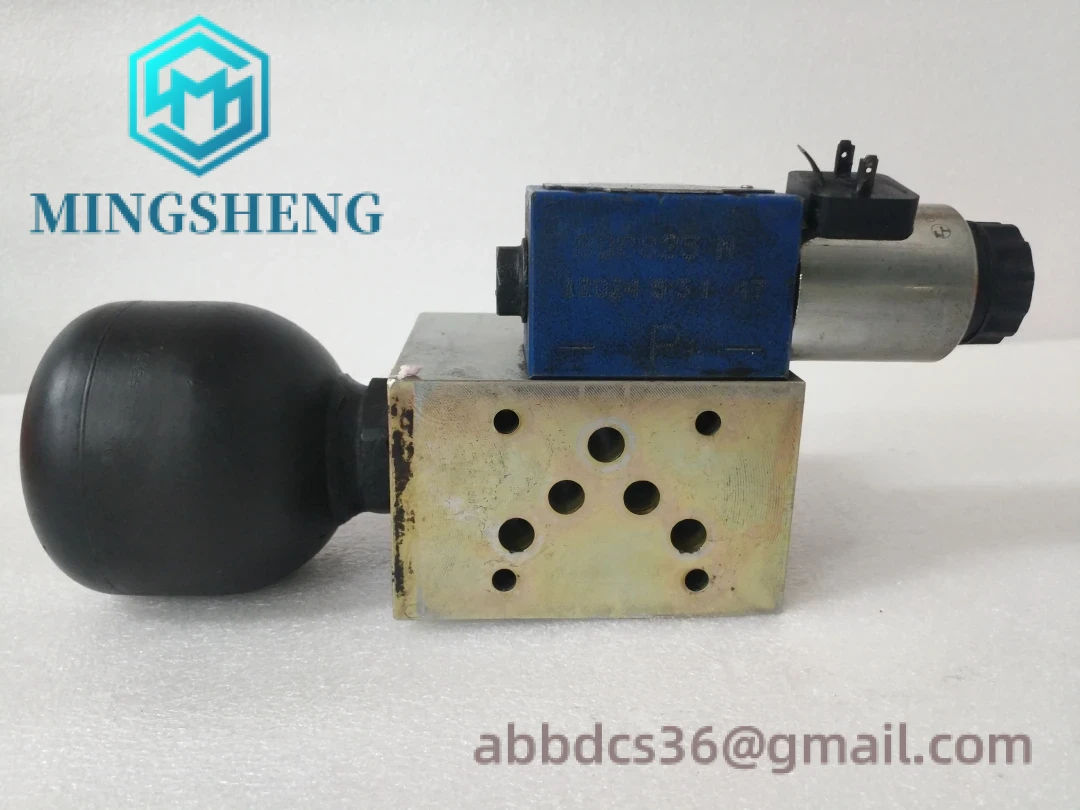

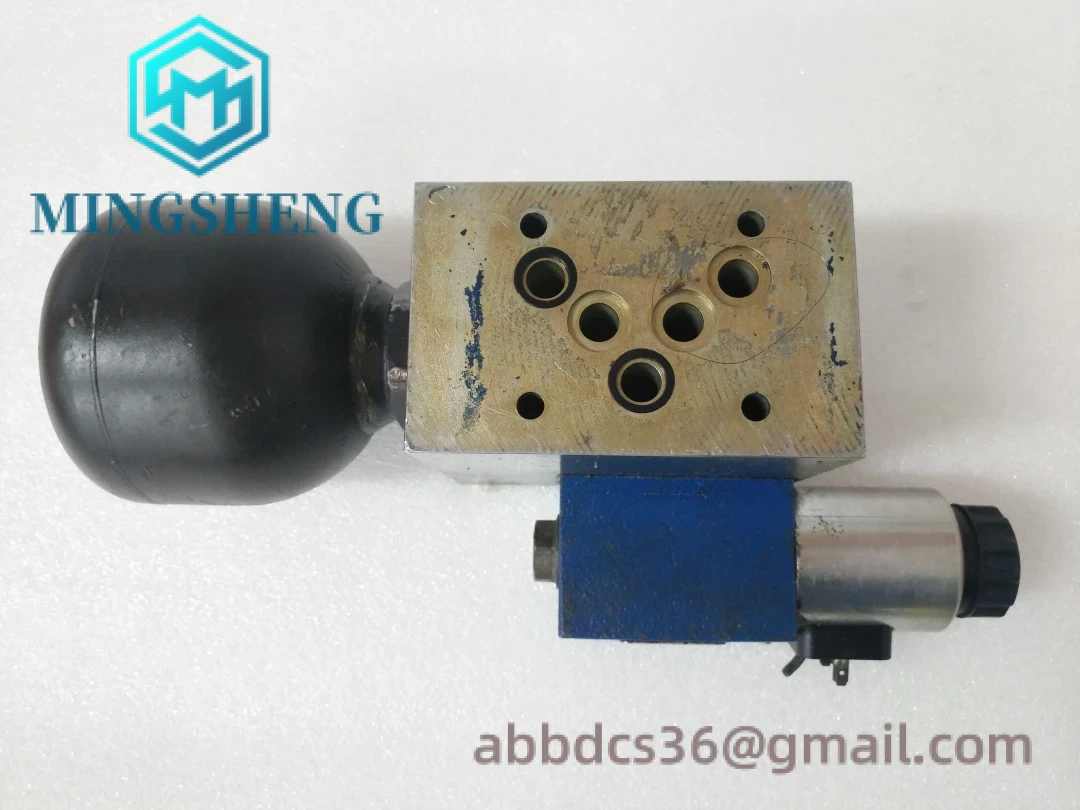

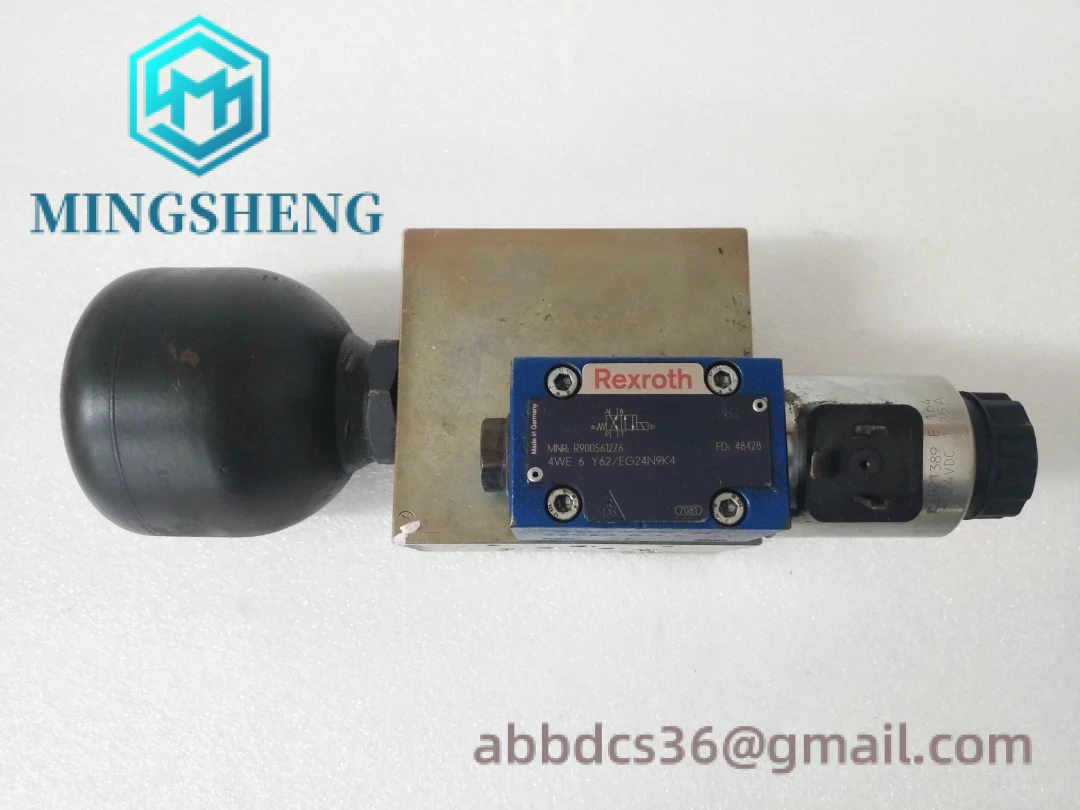

Bosch Rexroth 4WE6Y62 EG24N9K4 R900561276 + HSZ10-26916-AA G24N9K4M01 R901025684 Hydraulic Control Module
This dual-solenoid electro-hydraulic valve combination delivers precise directional control for industrial hydraulic systems. Designed for reliability in demanding environments, it regulates flow and pressure with millisecond-level response times, making it ideal for machinery requiring exact actuator positioning and load management.
Technical Specifications
Manufacturer: Bosch Rexroth
Order Number: R900561276 (4WE6Y62/EG24N9K4)
Additional Part Number: R901025684 (HSZ10-26916-AA G24N9K4M01)
Valve Type: Electro-Hydraulic Directional Control
Nominal Size: NG6 (6mm port size)
Operating Voltage: 24V DC
Coil Type: Wet Pin Solenoid
Mounting: ISO 4401 Subplate
Flow Rate: Up to 100 L/min
Max Pressure: 31.5 MPa
Temp Range: -30°C to +80°C
Material: Cast Iron
Certification: CE Compliant
Manual Override: N9 Emergency Operation
Weight: ~5.2 kg (valve only)
Engineers often choose this module for hydraulic presses, CNC machining centers, and mobile equipment like excavators. The cast iron housing maintains dimensional stability under 4,500 PSI, while the subplate mounting simplifies field replacements. We’ve supplied these to automotive manufacturers for press line retrofits – one client reported 18% improvement in cycle time after upgrading from older NG4 models.
Our inventory includes both standard and obsolete Rexroth modules. For instance, we recently supported a steel plant’s hydraulic system upgrade using this 4WE6Y62 series alongside compatible MSK060C-0600-NN-S1-UP1-NNNN servo drives. Technical datasheets and ISO mounting templates available upon request.
Our Services
- 16 global warehouses with 48-hour shipping
- 1-year functional warranty (including solenoid coils)
- Technical support from automation engineers
- Cross-reference assistance for obsolete models
- Custom hydraulic system integration
Pricing varies based on configuration. Email us with your complete part number for current availability, or WhatsApp for urgent requests.
