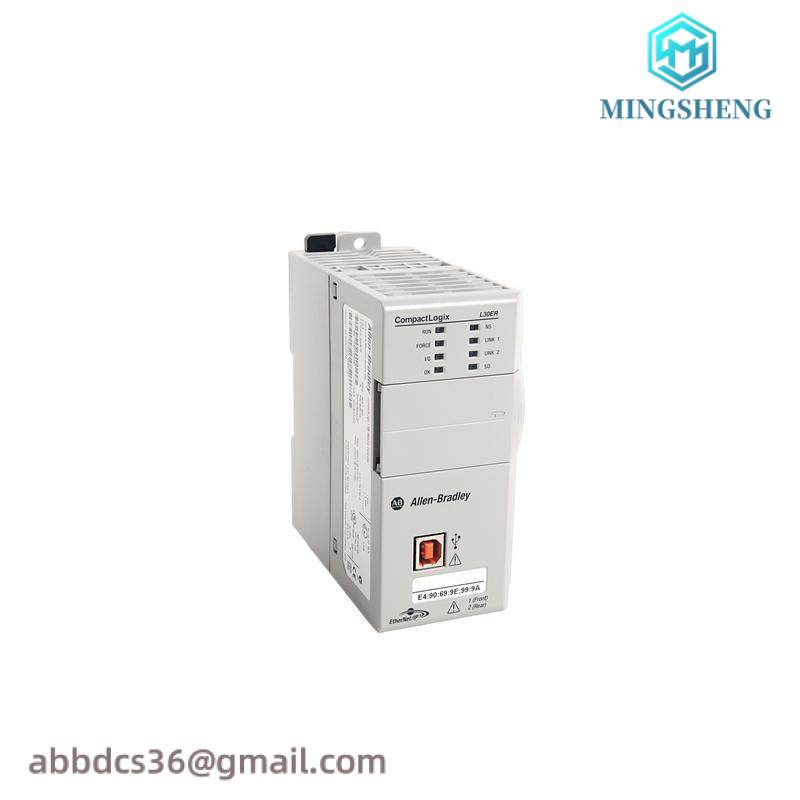

Allen-Bradley AB 1769-L30ER CompactLogix Integrated Controller

Processor Type:Advanced

Memory Size:1MB

Expansion Slots:Up to 5

Communication Ports:1 Ethernet, 1 Serial

Supported Modules:16 I/O

Operating Temperature:-25°C to 60°C

Enclosure Type:IP20

Power Supply:24VDC

Standards Compliance:IEC 61131-3, ANSI/ISA S84.01-2004

    The AB 1769-L30ER CompactLogix Integrated Controller is engineered to optimize production efficiency in a wide range of industrial environments. Its robust design ensures reliable performance under varying conditions, making it suitable for both new installations and system upgrades.

    With support for up to 16 I/O modules and 4 expansion slots, this controller offers flexible configuration options to meet diverse process needs. The inclusion of one Ethernet and one RS232 communication port facilitates seamless integration with existing networks and devices.

    Integrated with the powerful RSLogix 5000 programming environment, the controller enables advanced control strategies through ladder logic programming, enhancing operational flexibility and system scalability.

    Designed for ease of installation, the AB 1769-L30ER is compatible with both DIN rail and panel mounting, ensuring a secure fit in any industrial setting. Its temperature tolerance from -20°C to +60°C guarantees reliability in harsh environments.

    Equipped with class 1, 3 network communication capabilities, the controller supports up to 16 TCP connections, allowing for efficient data exchange with other networked devices. Additionally, the inclusion of 2 servo drive connections optimizes control over motors and actuators in precision applications.
