Input Voltage (AC):100-240V AC rms, 1-Phase
Frequency Range (AC):47-63 Hz
Main AC Input Current:9 A
Continuous Output Power:1 kW
Continuous Output Current:5 A
Intermittent Output Current:15 A
Bus Overvoltage Protection:452V DC
Shunt On Voltage:420V DC
General Purpose Inputs:8 selectable
General Purpose Outputs:4 selectable
Serial Communication Ports:1 (RS232 & RS485)
Multi-turn Absolute Encoders Support:Embedded
External Logic Power Supply:Option available
Dimensions:242.2 x 360.7 x 138.7 mm
Weight:Approx. 2.2 kg

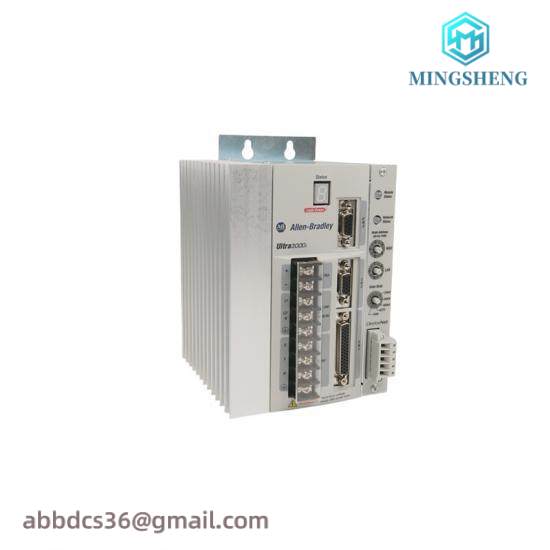

The Allen-Bradley 2098-DSD-010X-DN digital servo drive is engineered to deliver exceptional motion control capabilities across a wide range of industrial applications. With its versatile design and high-performance specifications, it ensures smooth operation, precise positioning, and energy efficiency.
Featuring an embedded support for multi-turn absolute encoders, this servo drive guarantees accurate tracking and position feedback, enhancing overall system reliability and reducing maintenance requirements.
Designed with eight selectable general-purpose inputs and four selectable outputs, the 2098-DSD-010X-DN allows for flexible configuration to meet diverse control needs. The inclusion of a dedicated RS232 and RS485 serial communication port enables seamless integration with various control platforms.
This servo drive is equipped with a powerful processor that manages complex motion profiles efficiently, enabling smooth acceleration, deceleration, and precise positioning in high-speed applications.
Built with robust materials and incorporating advanced cooling solutions, the 2098-DSD-010X-DN ensures longevity and reliability in challenging industrial environments. Its compact design facilitates easy installation and integration into existing systems.
