Operating Voltage:DC 24V
Current Consumption:Less than 200mA
Communication Interface:EtherCAT
Maximum Speed:Up to 10,000 RPM
Resolution:Up to 1µm
Operating Temperature Range:-20°C to +70°C
Dimensions (WxHxD):55mm x 44mm x 22mm

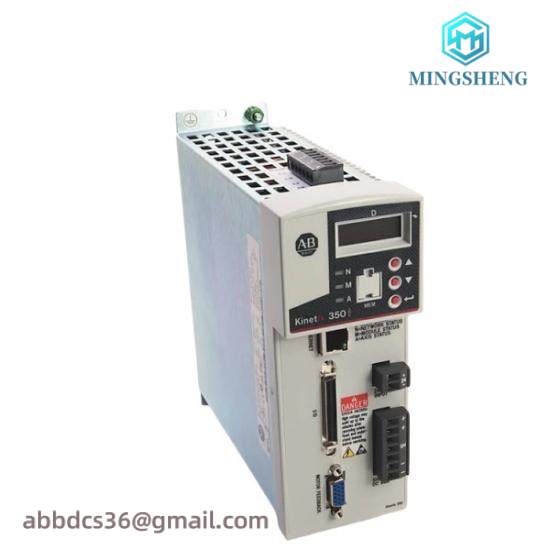

The Allen-Bradley 2097-V34PR5 AC Drive boasts an input voltage range from 320 to 528 volts RMS, three-phase, with a nominal input current of 5.5A and maximum inrush current of 4.5A. This drive is engineered to operate within a frequency range of 48 to 62 Hz, ensuring compatibility with a wide array of industrial settings.
Equipped with an advanced control power backup input voltage range from 20 to 26 volts DC, it ensures continuous operation even during power fluctuations. The drive is designed to deliver a continuous output current of 4.0A (RMS) and peak output current of 12.0A (RMS), providing ample power for various industrial applications.
Featuring an output power of 2.00 kW, this drive is capable of handling demanding loads efficiently. Its bus overvoltage capacity of 850VDC ensures robust protection against voltage surges, enhancing operational safety and reliability.
The Allen-Bradley 2097-V34PR5 AC Drive incorporates an integrated AC line filter, which significantly simplifies network wiring and reduces the cost associated with panel layout. This streamlined design not only minimizes installation time but also enhances overall system performance.
With its embedded Safe Torque Off functionality, this drive offers enhanced machine safety without compromising on productivity. It allows for immediate torque disengagement, safeguarding personnel and equipment in emergency situations while maintaining operational integrity.
