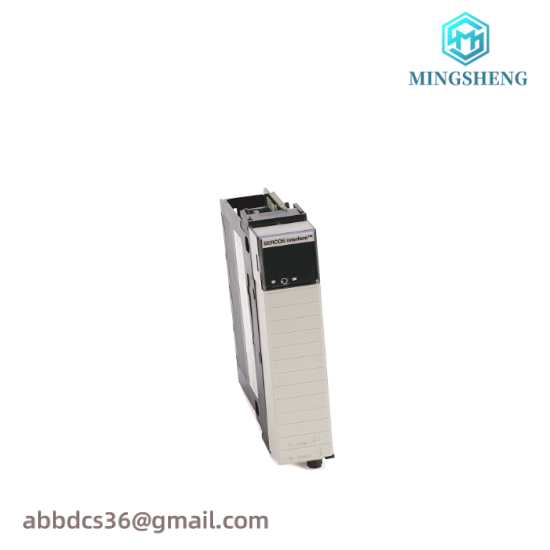

Allen-Bradley 1756-M16SE ControlLogix Servo Module: Precision Motion Control Solution

Model Type:Servo Module

Model Number:1756-M16SE

Manufacturer:Allen-Bradley

Input Voltage Range:24 VDC

Output Voltage:0-10 VDC

Resolution:16 bits

Communication Interface:ControlNet

Maximal Current Capacity:3 A

Operating Temperature:-25°C to +60°C

Dimensions (WxHxD):114.3 mm x 144.5 mm x 74.9 mm

Weight:0.5 kg

Power Consumption:10 W

    Introducing the Allen-Bradley 1756-M16SE ControlLogix Servo Module, a cutting-edge solution designed to revolutionize your automation landscape with its superior precision and performance capabilities. This servo module is meticulously engineered to deliver unmatched control and efficiency in complex motion applications.

    Equipped with an advanced micro-stepping mechanism, this module offers a resolution of 1 micro-step, enabling highly precise movements and positioning. Its ±16,384 counts capability ensures exceptional accuracy, making it ideal for applications requiring high levels of precision.

    The 1756-M16SE seamlessly integrates into the ControlLogix I/O bus, providing a robust and reliable connection for data exchange. It supports a power consumption of 2.5 watts, ensuring efficient operation while minimizing energy costs.

    Operated within an extensive temperature range of -40°C to +70°C, this module is built to withstand harsh industrial environments. The IP20 enclosure type provides basic protection against dust and water splashes, enhancing durability and longevity.

    Featuring an M12 connector for easy installation and maintenance, the Allen-Bradley 1756-M16SE is designed for quick setup and hassle-free integration into existing systems. Its compact size (110mm x 94mm x 66mm) and lightweight design (0.35kg) facilitate efficient space utilization without compromising functionality.
