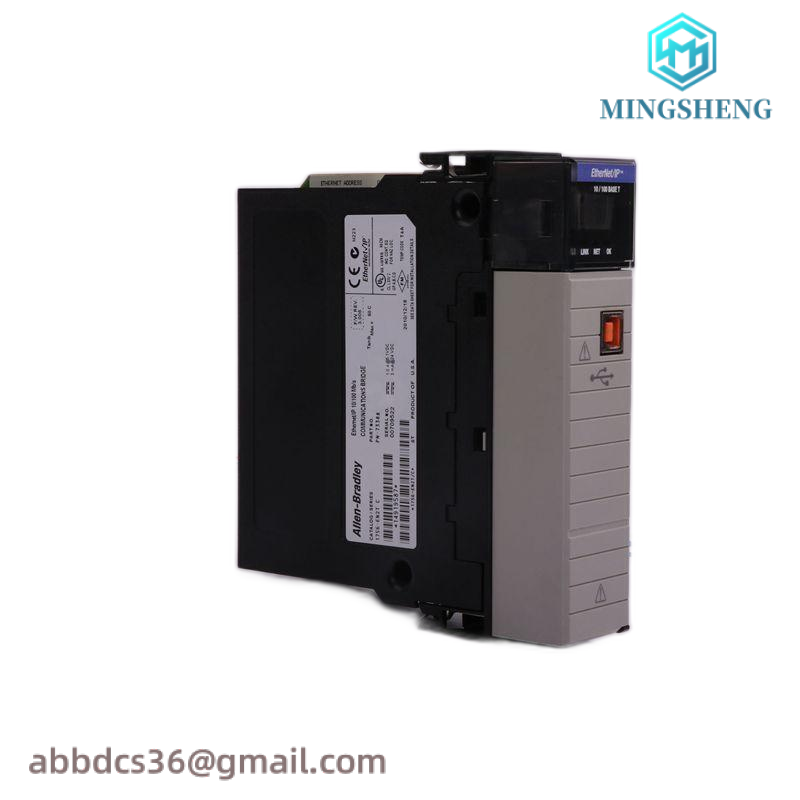

Allen-Bradley 1756-EN2T/C ControlLogix EtherNet/IP Bridge Module: Industrial Automation Excellence

Model Type:Communication Module

Capacity:High

IP Module Number:1756EN2T/C

Manufacturer:Allen-Bradley

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Present

    The Allen-Bradley 1756-EN2T/C ControlLogix EtherNet/IP Bridge Module is designed for advanced industrial automation applications, ensuring robust and efficient data transmission between ControlLogix controllers and EtherNet/IP networks.

    This bridge module supports a high capacity of IP communications, allowing for up to 64 TCP/IP connections and 128 Logix connections, including input/output (I/O) and information exchanges.

    With its open type enclosure, the module provides flexibility for various installation scenarios, while its 10/100 Mbps Ethernet/IP bridge ensures reliable communication speeds under diverse environmental conditions.

    Equipped with continuous isolation of 30 V, the module safeguards against electrical interference, ensuring stable operation even in harsh industrial environments. It is rated for 2 G vibration and 30 G shock resistance, guaranteeing durability and reliability.

    Compliant with 802.3 standards for connection cables, this module ensures compatibility with a wide range of twisted pair cables, simplifying the setup process for industrial networks.
