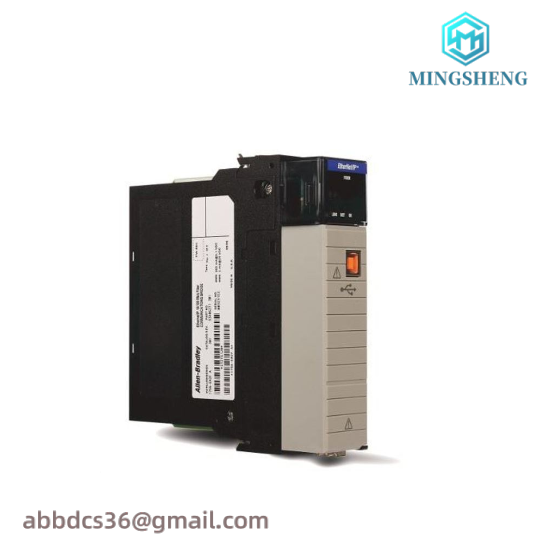

Allen-Bradley 1756-EN2F ControlLogix Fiber Module – Industrial Ethernet Connectivity Solution

Model Type:High Capacity IP Module

Model Number:1756-EN2F

Manufacturer:Allen Bradley

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not applicable

    The Allen-Bradley 1756-EN2F ControlLogix Fiber Module is specifically designed to enhance network performance in industrial automation environments by providing robust Ethernet/IP communication capabilities. Its open-type enclosure ensures compatibility with various industrial settings, allowing for flexible installation options.

    This module supports high-speed data transfer rates of up to 10/100 Mbps, ensuring reliable and efficient communication between ControlLogix controllers and other devices in the network. The 1756-EN2F is equipped with 802.3 compliant shielded or unshielded twisted pair cables, which are optimized for industrial environments with varying levels of electromagnetic interference.

    With its temperature rating of 0 – 60 °C and the ability to withstand harsh environmental conditions, this module is ideal for use in diverse industrial settings where reliability and durability are paramount. The continuous isolation feature provides an additional layer of protection against electrical interference, further enhancing the overall system’s stability and performance.

    Ease of integration is another key feature of the 1756-EN2F ControlLogix Fiber Module. It seamlessly connects to ControlLogix controllers and other devices through standard Ethernet connections, minimizing setup time and complexity. Additionally, the module supports advanced diagnostic functions, enabling users to monitor and troubleshoot issues efficiently without disrupting ongoing operations.

    For optimal performance and longevity, we recommend regular maintenance checks and adherence to manufacturer guidelines for installation and usage. By choosing the Allen-Bradley 1756-EN2F ControlLogix Fiber Module, you are investing in a reliable and future-proof solution for your industrial network infrastructure.
