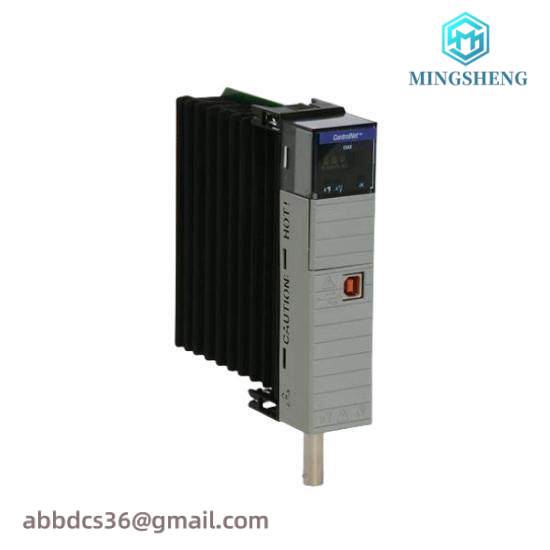

Allen Bradley 1756-CN2RXT ControlNet Redundant Bridge Module – Enhancing Industrial Automation Reliability

Model Type:Redundant Bridge Module

ControlLogix Model Number:1756-CN2RXT

Manufacturer:Allen-Bradley

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not applicable

    Integrating advanced redundancy technology, the AB 1756-CN2RXT ControlNet Redundant Bridge Module ensures robust connectivity in demanding industrial environments. Its hot standby feature guarantees uninterrupted operation, even in case of unexpected failures, thus minimizing downtime and maximizing production output.

    Featuring a compact and durable IP20 enclosure, this module is designed for easy installation and maintenance, ensuring reliable performance in a variety of industrial settings. The M12 connector facilitates secure and quick connection to ControlLogix controllers and other ControlNet devices, simplifying the setup process.

    With its fast data transfer rate of up to 100 kbps, the 1756-CN2RXT ensures timely and accurate communication, crucial for complex control applications requiring high-speed data exchange. This feature is particularly advantageous in scenarios where rapid response times are essential for operational efficiency.

    The module’s low power consumption, combined with its wide temperature range, makes it suitable for a broad spectrum of industrial conditions. Whether operating in extreme cold or heat, this ControlNet Redundant Bridge Module maintains optimal performance, providing consistent reliability throughout its lifecycle.

    Designed with user-friendliness in mind, the AB 1756-CN2RXT includes intuitive diagnostics and self-testing capabilities, enabling quick identification of issues and swift resolution. This not only reduces maintenance time but also enhances overall system reliability by proactively addressing potential problems.
