Power Consumption:Less than 1.0W
Operating Voltage:DC 24V
Signal Type:Digital
Number of Inputs:16
Isolation Rating:2000V AC
Communication Interface:RS-485
Operating Temperature:-20°C to +55°C
Humidity Range:5% to 95% non-condensing
Dimensions (WxDxH):112mm x 112mm x 94mm

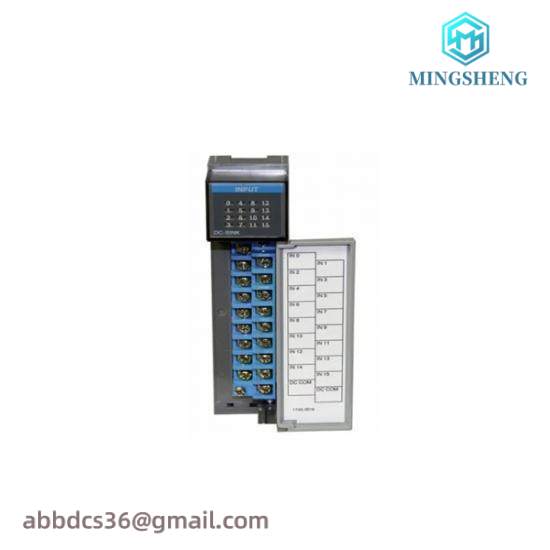

The Allen Bradley 1746-IN16 Digital AC Input Module is engineered for seamless integration into advanced industrial control systems, ensuring reliable and accurate signal conversion for optimal performance.
Featuring 16 channels capable of handling 24 VAC/DC or 10-30 VAC/DC signals (sink type), this module ensures precision in data acquisition and processing.
With an off-state input voltage of 3 VAC/VDC and nominal current of 8 mA at 24 VAC/VDC, it provides robust signal handling under varying conditions, making it suitable for harsh industrial environments.
The isolation specifications, including communication circuits isolated at 500 VDC and backplane at 1500 VAC, ensure high levels of safety and reliability, preventing potential short-circuits and voltage spikes.
The open type enclosure and chassis mounting design facilitate easy installation and maintenance, while its temperature rating from 0 to 60 DEG C ensures operational stability across diverse climate conditions.
Equipped with advanced Allen Bradley technology, this input module is optimized for efficient signal processing, contributing to enhanced system performance and productivity in manufacturing, automation, and process control applications.
