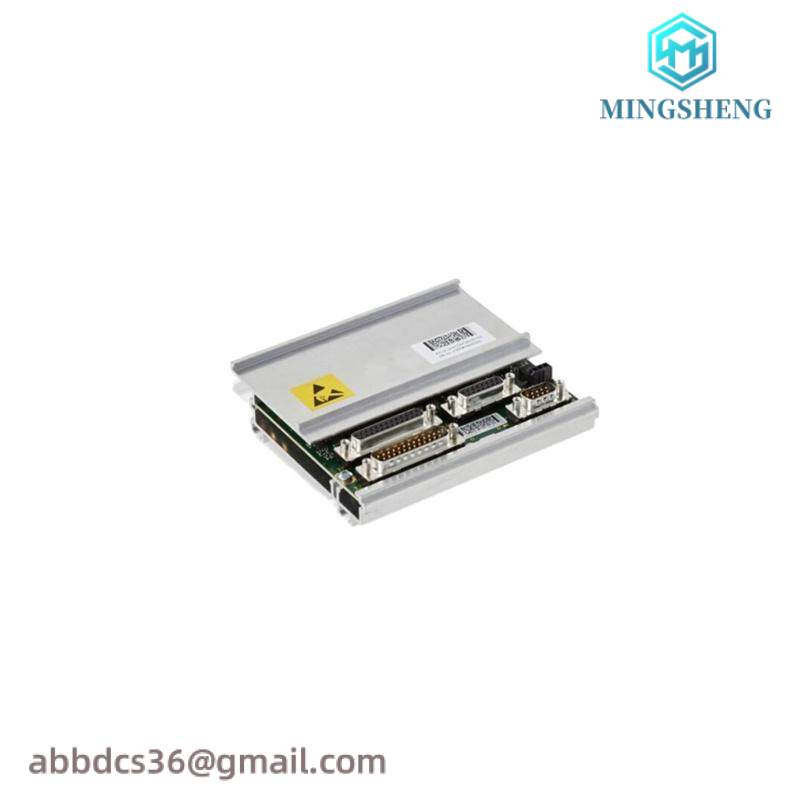

ABB SMB Measurement Board: 3HAC044168-001, 3HAC042285-001, 3HAC031115-002

Model:[“3HAC044168-001″,”3HAC042285-001″,”3HAC031115-002”]

Type:SMB Measurement Board

Operating Voltage:8…40 V DC

Operating Temperature Range:-20°C…+70°C

Dimensions (W x H x D):110 x 122 x 16 mm

Weight:0.1 kg

Data Acquisition Speed:100 kSPS

Analog Inputs:4 channels

Digital Inputs:2 channels

Communication Interface:RS485

Accuracy:+/- 0.01% + 2 LSB

Operating Conditions:Shock resistance: 10g, 5ms, per MIL-STD-202F Method 213; Vibration resistance: 2g, per MIL-STD-202F Method 204

    The ABB 3HAC SMB Measurement Board offers unparalleled precision and durability for industrial control applications, ensuring reliable operation in harsh environments.

    Equipped with an advanced microcontroller, this board supports a wide range of measurement tasks, from voltage and current monitoring to complex signal processing.

    Featuring an intuitive RS-485 Modbus RTU interface, it seamlessly integrates with various PLC systems, enhancing system efficiency and reducing setup time.

    With its compact design and robust construction, the ABB 3HAC SMB Measurement Board can withstand extreme temperature fluctuations without compromising performance.

    Designed for ease of installation and maintenance, this board minimizes downtime, making it an ideal choice for continuous operation in manufacturing, energy, and other industrial sectors.
