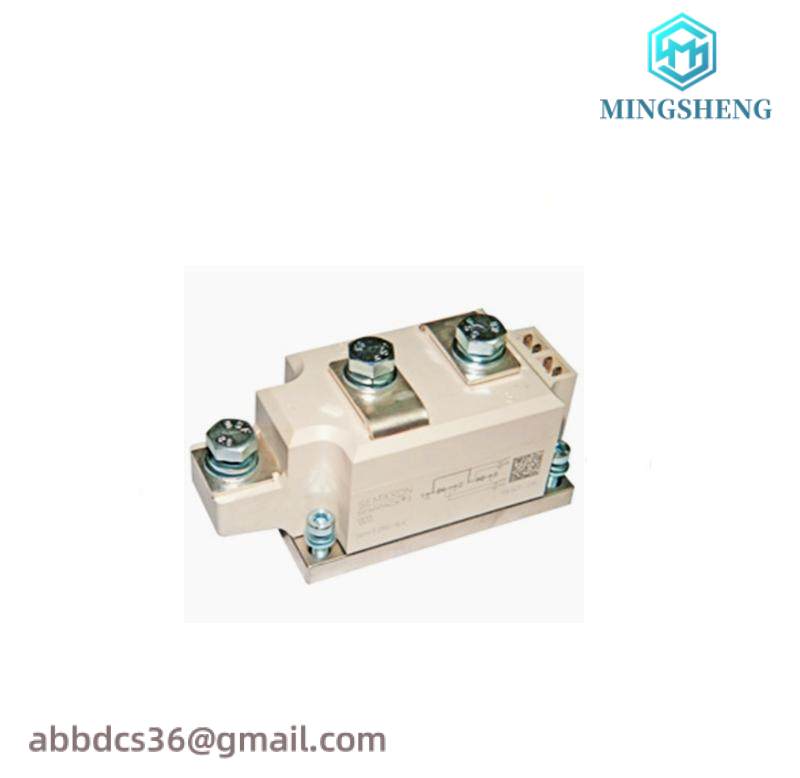

ABB SKKH280/20EH #68602203: Thyristor/Diode Module for Industrial Control

Type:Thyristor/Diode Module

Model:SKKH280/20EH

Part Number:#68602203

Module Capacity:280A / 200VDC

Operating Temperature Range:-40°C to +85°C

Insulation Voltage:5kVrms

Switching Frequency:Up to 5kHz

Current Rating:Continuous: 280A, Peak: 420A

Diode Forward Voltage Drop:Typically 1.2V at 1A

    This ABB SKKH280/20EH #68602203 module is specifically engineered for high-reliability applications in industrial automation systems. It features advanced semiconductor technology for precise current control and efficient power handling.

    With a wide operating temperature range from -40°C to +85°C, this module ensures robust performance under various environmental conditions. Its insulation voltage rating of 5kVrms provides excellent isolation, ensuring safety and reliability.

    Capable of switching at frequencies up to 5kHz, it supports high-speed control signals, making it ideal for dynamic industrial processes. The module is rated for continuous current of 280A and peak current of 420A, enabling it to handle demanding loads efficiently.

    Equipped with low forward voltage drop diodes, this module optimizes energy consumption, reducing power loss during operation. Its design incorporates the latest semiconductor materials for enhanced efficiency and longevity.

    Designed for ease of integration into existing systems, the ABB SKKH280/20EH #68602203 offers quick installation and compatibility with a wide range of industrial control systems, ensuring seamless operation within manufacturing environments.
