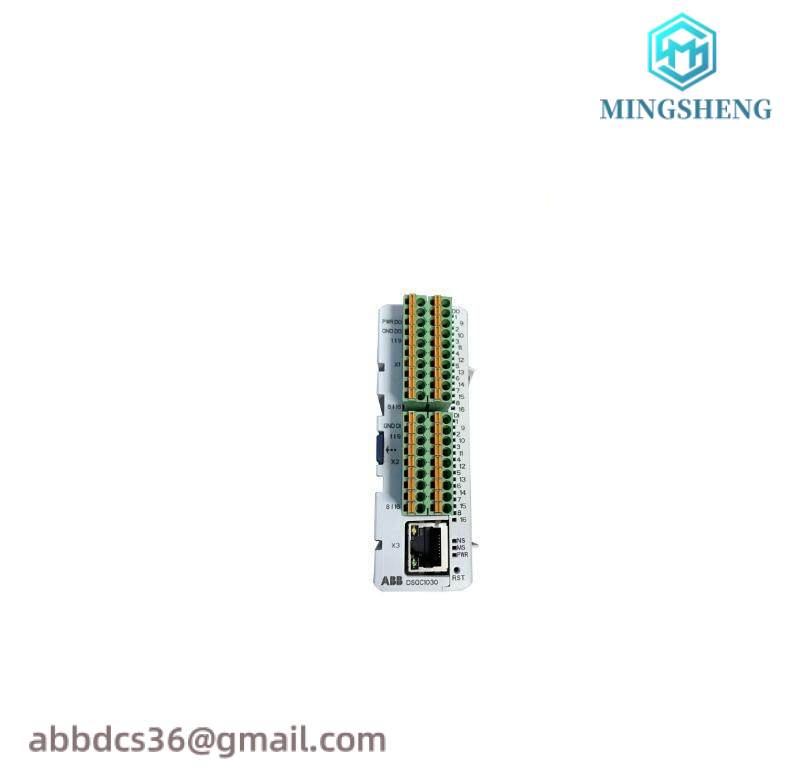

ABB DSQC1030: Advanced IO Communication Module for Industrial Automation, 200 Characters

Brand:ABB

Model:DSQC1030

Part Number:3HAC058663-001

Module Type:IO Communication

Dimensions (WxHxD):100mm x 80mm x 30mm

Operating Voltage:10-30V DC

Operating Current:Max 25mA

Communication Protocol:EtherCAT

Number of Inputs/Outputs:16x Digital, 8x Analog

Relay Output Rating:Max 10VDC @ 50mA per channel

Operating Temperature Range:-25°C to +70°C

Storage Temperature Range:-40°C to +85°C

    Integrating the ABB DSQC1030 IO Communication Module into your industrial automation system ensures efficient data processing and communication capabilities. With its high-speed RS-485 interface, this module supports Modbus RTU protocol, allowing seamless interaction with diverse field devices.

    Featuring 16 channels—eight analog inputs and eight analog outputs—the DSQC1030 offers flexibility in handling various types of signals. This makes it suitable for applications requiring precise control and monitoring of process variables.

    Designed for robust industrial environments, the module operates within a wide temperature range (-20°C to +60°C) and maintains reliability under varying humidity conditions. Its IP20 enclosure provides protection against dust and splashes, ensuring durability in challenging settings.

    The compact size (100mm x 100mm x 26mm) and lightweight design (150g) facilitate easy installation and integration without compromising on functionality. The ABB DSQC1030 is compliant with IEC 61131-2 and IEC 61131-3 standards, ensuring compatibility with a broad range of programming languages.

    Experience enhanced performance and reliability in your automation projects with the ABB DSQC1030 IO Communication Module. It’s the ideal choice for optimizing industrial systems and enhancing operational efficiency.
