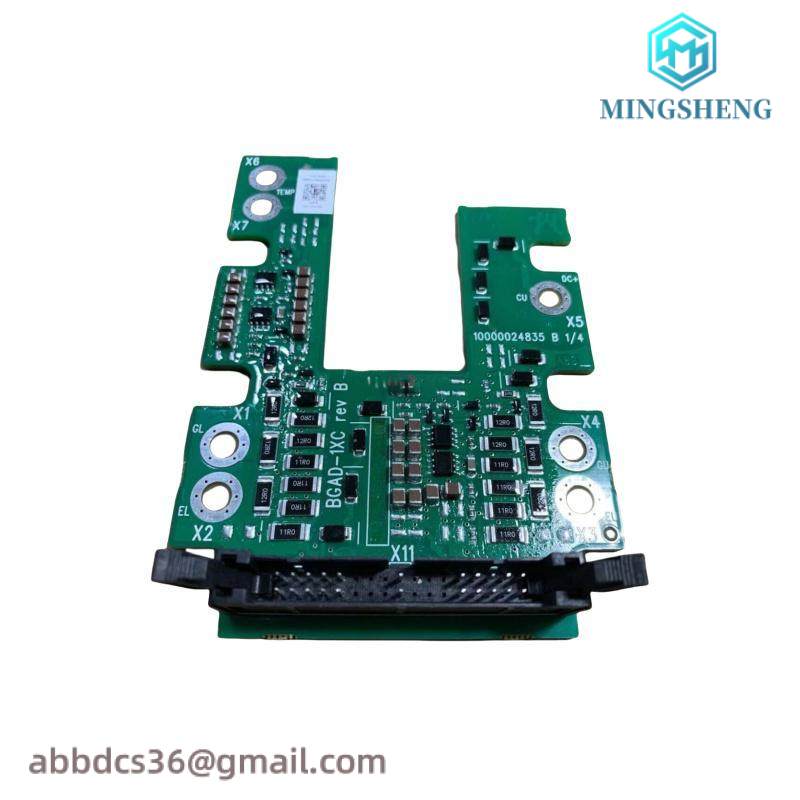

ABB BGAD-11C IGBT Module: Precision Control for Industrial Automation

Model:BGAD-11C

Type:IGBT Module

Manufacturer:ABB

Operating Temperature Range:-40°C to +150°C

Rated Current:2000A

Maximum Voltage:600V

Switching Frequency:20kHz

Insulation Resistance:≥10MΩ @ 500V DC

Input Resistance:≤0.5Ω

Output Inductive Load Compatibility:Up to 100μH

    Engineered for unparalleled precision in industrial automation, the ABB BGAD-11C IGBT module is designed to optimize performance and efficiency in a wide range of applications.

    Featuring a robust design that withstands extreme operating temperatures from -40°C to +150°C, this module ensures reliability in demanding environments.

    With a rated current of 2000A and maximum voltage capability of 600V, it provides ample power handling capacity for high-performance systems.

    Equipped with a switching frequency of 20kHz, the BGAD-11C module ensures smooth operation and minimal energy loss, enhancing system dynamics.

    Ensuring safety and integrity, the module boasts an insulation resistance of ≥10MΩ at 500V DC, guaranteeing a high level of protection against electrical hazards.
