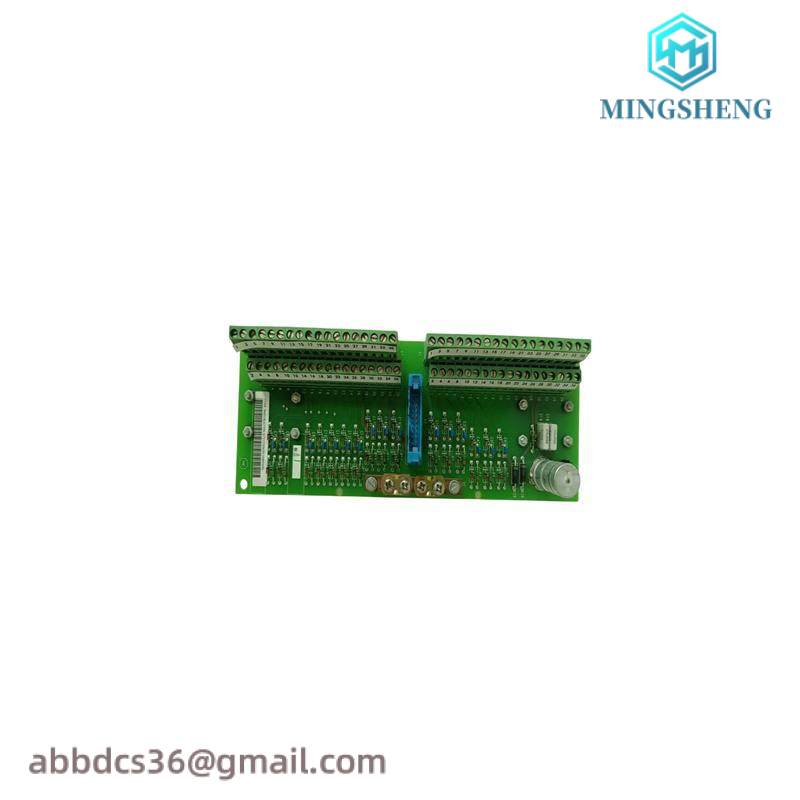

ABB 58063282A | SCYC55830 | 3AFE58063282 – Trigger Pulse Board

Manufacturer:ABB

Model:58063282A

Sub-Model:SCYC55830

Module Type:Trigger Pulse Board

Operating Voltage:220V AC

Frequency Range:30 kHz

Input Current:0.2A

Output Type:Square Wave

Trigger Mode:Level, Edge, Pulse

Communication Interface:RS-485, CANopen

Dimensions:240mm x 70mm x 30mm

Weight:0.5kg

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

    This Trigger Pulse Board from ABB is engineered with precision control capabilities, essential for the seamless operation of advanced automation systems. Its robust design ensures reliable performance across a wide range of environmental conditions, making it ideal for industrial settings.

    Featuring advanced semiconductor technology, this module guarantees high accuracy in timing and pulse generation, significantly enhancing the overall efficiency and reliability of your automation processes.

    With support for a broad operating temperature range (-20°C to +85°C), the ABB Trigger Pulse Board is versatile enough to withstand extreme conditions without compromising performance.

    Equipped with a DC voltage supply ranging from 12V to 36V, the module is compatible with various power sources, offering flexibility in system integration.

    The low current consumption of ≤20mA at 12V ensures energy efficiency, reducing operational costs while maintaining high performance standards.

    Offering a pulse frequency range of 0.1Hz to 20KHz, the ABB Trigger Pulse Board can generate precise pulses suitable for various application requirements, ensuring optimal system response.
