Operating Voltage:Up to 1000V DC
Maximum Switching Frequency:20 kHz
Package Size:Compact and lightweight design
Cooling Method:Passive air cooling
Input Signal:Digital control signals
Output Signals:Optimized for MOSFET or IGBT drivers
Board Compatibility:Compatible with ABB‘s advanced control systems

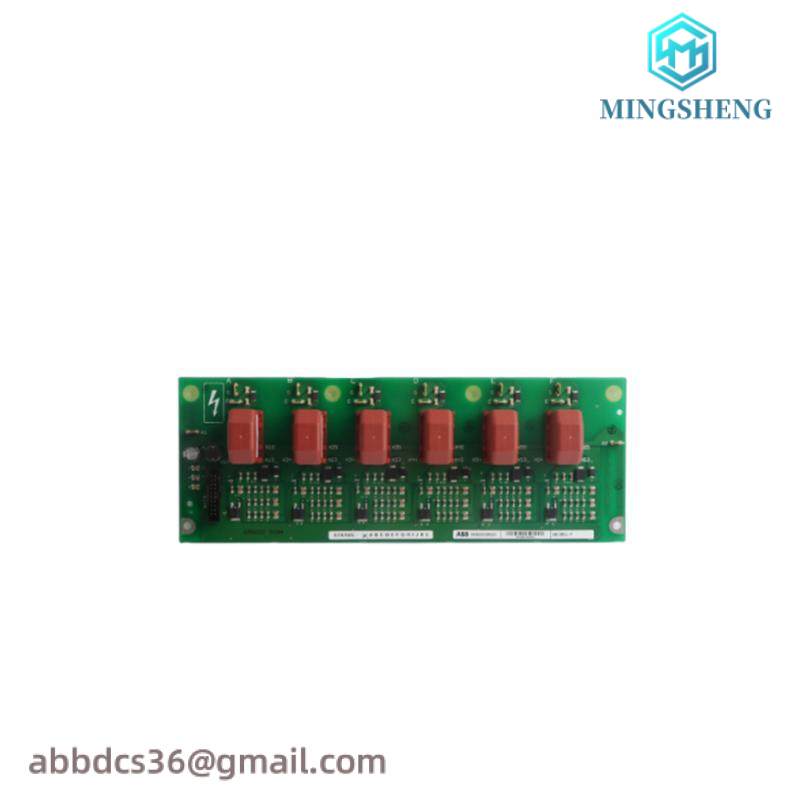

The ABB 3BHB006338R0001 Gate Driver Board offers advanced functionality with its half-bridge design, providing efficient power management for industrial applications. It ensures reliable operation in harsh environments, thanks to its robust construction and comprehensive protection features.
Equipped with a high-speed RS-485 communication interface, this board facilitates seamless data exchange and control over industrial processes, enhancing overall system efficiency.
With an operating voltage of 220 V and a frequency range of 30 kHz, it supports a wide array of industrial loads, making it suitable for various applications from motor control to complex automation systems.
Featuring up to 20 A power handling capacity, this gate driver board ensures high current capability, enabling it to manage heavy-duty loads with ease. Its design ensures precise control, contributing to improved performance and reduced energy consumption.
Designed with user convenience in mind, the ABB 3BHB006338R0001 comes with built-in overcurrent and overvoltage protections, safeguarding against potential damage and ensuring uninterrupted operation. Its wide temperature compatibility (-40°C to +85°C) makes it ideal for use in extreme conditions.
