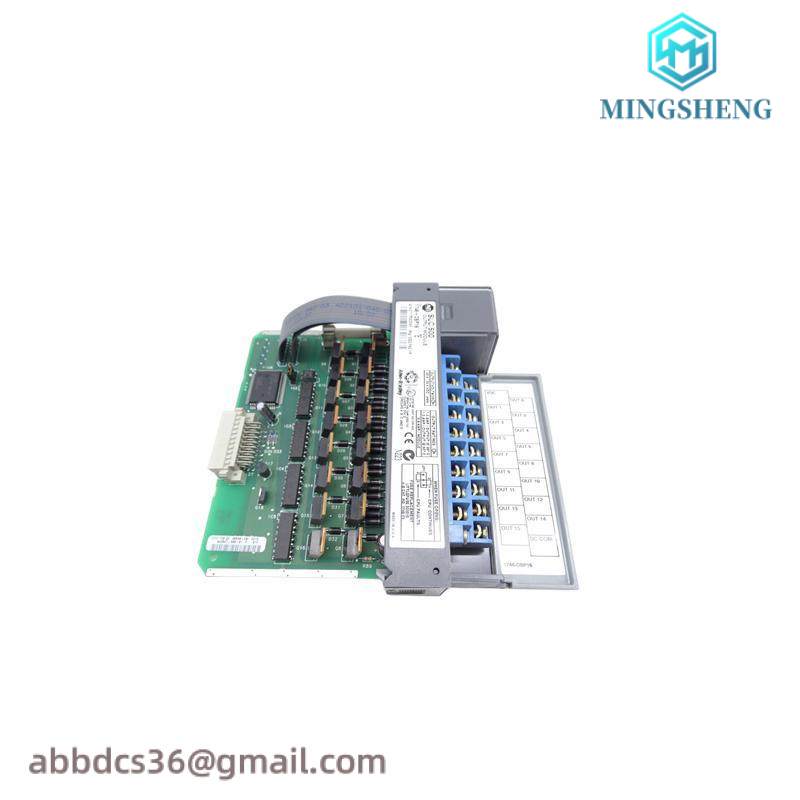

AB 1746-OBP16: High-Performance Digital DC Output Module for Industrial Automation

Model Type:Digital DC Output Module

Model Number:1746-OBP16

Manufacturer:Allen-Bradley

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Current:1 MA

Continuous Current per Output:0.25 A at 60 °C

Continuous Current per Module:4 A at 60 °C

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}

Processor:SLC 500

Enclosure Type:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 °C

Environmental Conditions:5 – 95%

    Engineered for reliability and precision, the AB 1746-OBP16 module is a critical component for advanced industrial automation systems. This state-of-the-art module offers 16 digital outputs, each capable of delivering tailored voltage levels and currents to suit diverse industrial applications.

    Featuring a robust design with high isolation capabilities, it ensures minimal interference between circuits, safeguarding the integrity of your system’s operation. The on-state voltage drop is minimized to ensure efficient power utilization, enhancing system performance.

    Equipped with an advanced processor, the module integrates seamlessly with Allen Bradley’s SLC 500 series, enabling sophisticated control over processes. Its open-type enclosure facilitates easy integration into existing systems, while the chassis mounting option supports versatile installation scenarios.

    Withstanding temperatures from 0 to 60°C and operating within a 5 to 95% non-condensing relative humidity range, this module is built to withstand harsh industrial environments. Its comprehensive specifications make it a preferred choice for applications requiring high reliability and precision.

    For optimal performance, the AB 1746-OBP16 Digital DC Output Module is designed with continuous current ratings that cater to both backplane and individual output needs, ensuring consistent power delivery under varying operational conditions. It is a testament to Allen Bradley’s commitment to innovation and quality in industrial automation solutions.
