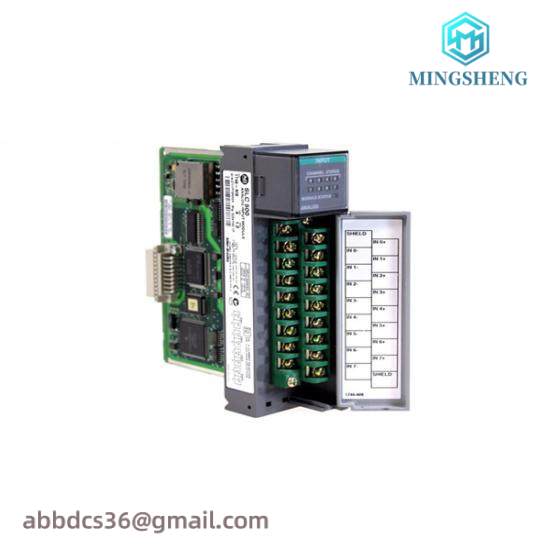

AB 1746-NL8 Analog Input Module

Product Type:Analog Input Module

Manufacturer:Allen-Bradley

Model Number:1746-NL8

Channels:4

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Max)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    Experience unparalleled precision with the Allen-Bradley 1746-NL8 Analog Input Module, an indispensable tool for any industrial automation setup. Designed to seamlessly integrate with Allen-Bradley PLC systems, this module ensures reliable and accurate data acquisition.

    Featuring 8 independent analog input channels, the 1746-NL8 is capable of handling a wide range of sensor inputs, from temperature to pressure, ensuring versatile application across diverse industries.

    Built with advanced circuitry, the module guarantees exceptional accuracy within ±0.05% Full Scale at 20°C, making it ideal for applications where precision is paramount.

    Engineered for robust performance in harsh environments, the 1746-NL8 operates efficiently within temperatures ranging from -40°C to +70°C, and its compact design ensures minimal power consumption, enhancing system efficiency.

    For optimal reliability, the module includes a high isolation rating, protecting against voltage spikes and ensuring safety in potentially hazardous industrial settings. Coupled with its easy-to-install design, the Allen-Bradley 1746-NL8 Analog Input Module streamlines your automation process, delivering consistent, high-quality performance day after day.
